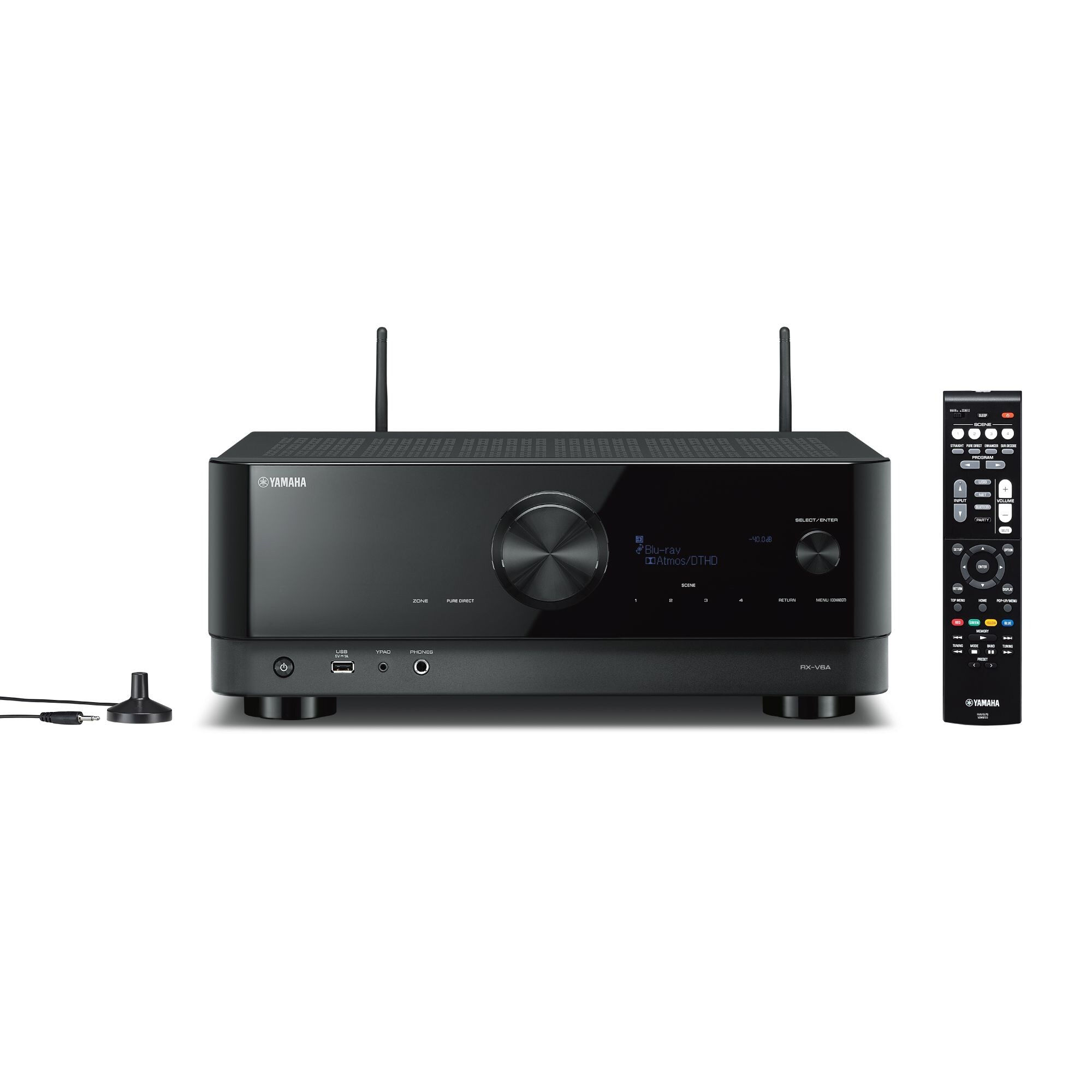

YAMAHA MusicCast RX-V6A Namų kino stiprintuvas



AV Receiver

Amplifier Section

Channel

7.2

Rated Output Power (1kHz, 1ch driven)

150 W (4 ohms, 0.9% THD)

Rated Output Power (20Hz-20kHz, 2ch driven)

100 W (8 ohms, 0.06% THD)

Maximum Effective Output Power (1kHz, 1ch driven) (JEITA)

160 W (6 ohms, 10% THD)

High Slew Rate Amplifier

Yes

Surround Sound Processing

Surround:AI

N/A

CINEMA DSP

Yes

DSP Programs

17

Dialog Level Adjustment

Yes

Virtual Presence Speaker

Yes

Virtual Surround Back Speaker

Yes

Dialogue Lift

Yes

SILENT CINEMA / Virtual CINEMA DSP

Yes

Dolby Atmos

Yes

Dolby Atmos Height Virturalizer

Yes (via future update)

Dolby TrueHD

Yes

Dolby Digital Plus

Yes

Dolby Surround

Yes

DTS:X

Yes

DTS-HD Master Audio

Yes

Auro 3D

N/A

Audio Features

File Format

MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz

Pure Direct

Yes

Compressed Music Enhancer

Yes

High-resolution Music Enhancer

N/A

YPAO multi-point measurement

Yes

YPAO Volume

Yes

Adaptive DRC (Dynamic Range Control)

Yes

Initial Volume & Maximum Volume Setting

Yes

A.R.T. Wedge

N/A

Bi-amp capability

Yes

Audio Delay

Yes (0-500 ms)

DA Converter

384 kHz / 32-bit BB PCM5101A

Video Features

HDMI eARC

Yes

HDMI Audio Return Channel

Yes

HDMI Pass-through

8K60B, 4K120AB (via future update)

HDMI Up-scaling

Yes up to 4K

HDMI Up-conversion

N/A

HDR 10+

Yes (via future update)

VRR/ALLM/QMS/QFT

Yes (via future update)

Video adjustment

N/A

Connectivity

MusicCast Surround

Yes

HDMI Input/Output

7 / 1

HDMI CEC

Yes

USB Input

Yes

Network Port

Yes

Wi-Fi

Yes (2.4 / 5 GHz)

AirPlay

Yes

Bluetooth

Yes (SBC / AAC)

Front AV Input

USB

Digital Audio Input/Output: Optical

1 / 0

Digital Audio Input/Output: Coaxial

1 / 0

Analog Audio Input/Output

4 / 0

Phono Input

Yes

XLR Terminal

N/A

Component Video Input/Output

N/A

Composite Video Input/Output

N/A

Preout

2.2-ch

Headphone Output

1

Tuner Section

FM/AM Tuner

Yes (Availability varies by region.)

DAB Tuner

Yes (Availability varies by region.)

User Interface

On-screen display

Graphical User Interface

SCENE

Yes (8 sets)

App Control

Yes (iPhone / iPad / Android phone / tablet)

Web Browser Control

Yes

Remote Control Unit

Yes

Zone Control

Zone 2 Audio Output

Preout

Zone 3 Audio Output

N/A

Zone 4 Audio Output

N/A

Powered Zone

Zone 2

Zone Video Output

N/A

Zone B Output

N/A

Zone GUI

N/A

RS-232C Interface

1

+12V Trigger Output

N/A

Remote (IR) Input/Output

N/A

Party Mode

Yes

General

Standby Power Consumption (IR only)

0.1 W

Auto Power Standby

Yes

ECO mode

Yes

Dimensions (W x H x D)

435 W x 171H x 377D mm (with antenna up:435 W x 245 H x 377 D mm);17-1/8"W x 6-3/4"H x 14-7/8"D (with antenna up:17-1/8"W x 9-5/8"H x 14-7/8"D)

Weight

9.8 kg; 21.6 lbs.
